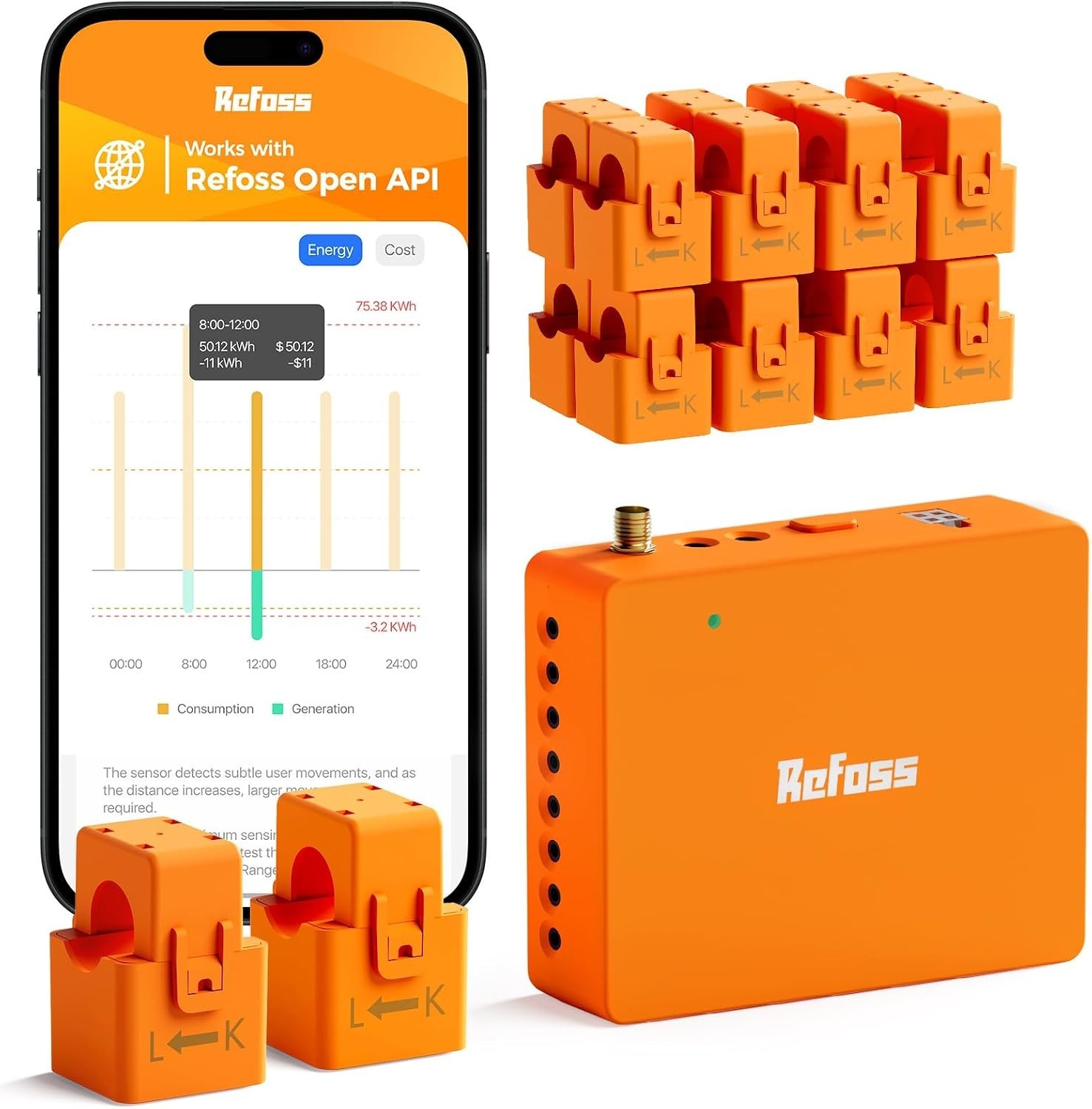

Refoss Smart Home Energy Monitor EM16P – 16 Circuit
Real-Time Electricity Usage Monitor with 16×60A Sensors, Local Control & Home Assistant
Take control of your home's energy usage with the Refoss EM16P Smart Home Energy Monitor, a professional multi-circuit monitoring system designed to provide real-time visibility into electricity consumption. With 2 main 200A sensors and 16 branch-circuit 60A sensors, local data access, Open API support, Home Assistant integration, solar metering, and electricity cost tracking, it provides detailed insight into where your energy is being used.
⚡ Best For
- Smart home energy monitoring
- Home Assistant users
- Electricity cost tracking
- Solar power and net-metering systems
- Monitoring individual appliances and circuits
- Energy audits and consumption optimization
- Single-phase, split-phase, and compatible 3-phase electrical systems
🔌 Key Features
- 18-Circuit Monitoring: 2 main circuits + 16 branch circuits
- 2 × 200A Main Current Transformers
- 16 × 60A Branch Current Transformers
- Real-Time Power Monitoring for power, current, voltage, and power factor
- Local Web UI & Open API for cloud-independent control and data access
- Home Assistant Compatible for smart-home automation
- MQTT & WebSocket Support
- Solar Metering for monitoring solar production and energy consumption
- ±1% Accuracy for professional-grade energy tracking
- 5-Year Detailed Data Storage with exportable energy data
- Smart Energy Alerts help identify unusual consumption and potential appliance problems
- External High-Gain Wi-Fi Antenna for improved connectivity
- ETL Certified
⭐ Why Buyers Choose It
- Monitor multiple individual circuits from one centralized system
- See which appliances and circuits consume the most electricity
- Track electricity usage and estimated costs in real time
- Keep energy data locally without depending entirely on cloud services
- Excellent integration potential for Home Assistant installations
- Useful for optimizing solar self-consumption
- Supports heavier branch circuits with 60A sensors
- Ideal for homeowners who want detailed control over their electrical usage
📋 Technical Specifications
- Brand: Refoss
- Model: EM16P
- ASIN: B0FQ9ZNKBL
- Product Type: Smart Home Energy Monitor
- Main Circuit Sensors: 2 × 200A
- Branch Circuit Sensors: 16 × 60A
- Total Monitoring Channels: 18
- Accuracy: Up to ±1%
- Power Supply: 100–240V AC, 50/60Hz
- Supported Systems: Single-phase 2-wire, split-phase 3-wire, and 3-phase 4-wire Wye systems
- Solar Monitoring: Yes
- Home Assistant: Supported
- Local Web UI: Yes
- Open API: Yes
- MQTT: Supported
- Data Storage: Up to 5 years
- Certification: ETL
- Approx. Product Dimensions: 4.5 × 3.5 × 1.1 in.
- Approx. Package Weight: 4.27 lb
- Color: Orange & White
📦 Included
- 1 × Refoss EM16P Home Energy Monitor
- 1 × Wi-Fi Antenna Assembly
- 2 × 200A Current Transformers
- 16 × 60A Current Transformers
- 2 × 3.5mm Insulation Plugs
- 16 × 2.5mm Insulation Plugs
- 3 × Wire Nuts
- 3 × Extra Wires
- 1 × Wire Harness
- 1 × User Manual
🏠 Practical Smart Energy Monitor Upgrade
Upgrade your home energy management with 18 individual monitoring channels, local control, and smart-home integration. The EM16P makes it easier to identify energy-hungry appliances, monitor individual circuits, track electricity costs, and optimize solar energy usage without relying exclusively on cloud-based services.
⚠️ IMPORTANT INSTALLATION NOTE
This device connects to an electrical service panel and installation involves potentially hazardous voltages. Installation should be performed by a qualified electrician and according to applicable local electrical codes. Verify that your electrical system is compatible before installation.
